Description
The all-rounder drive of choice for OEMs
Minimise downtime and system set-up

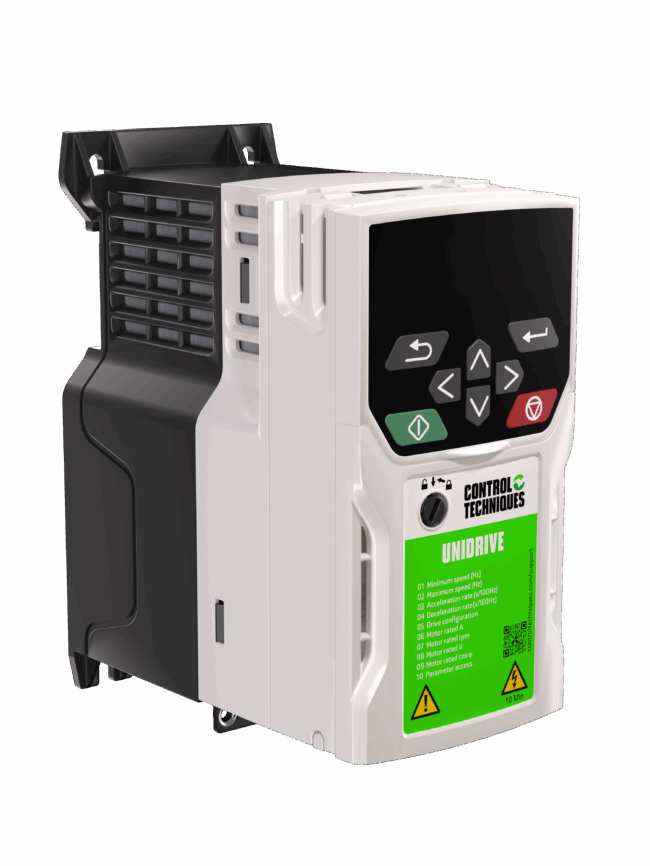

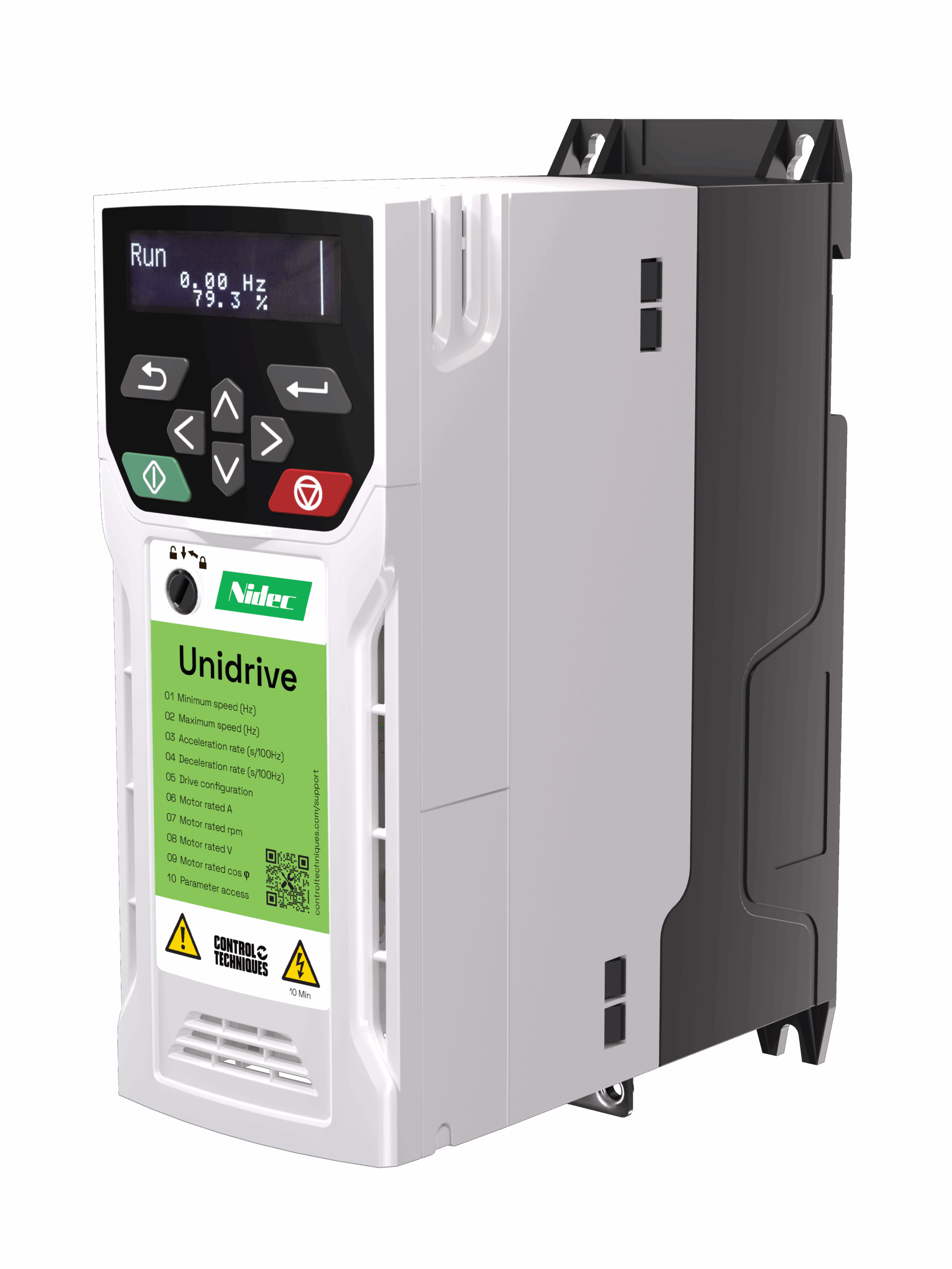

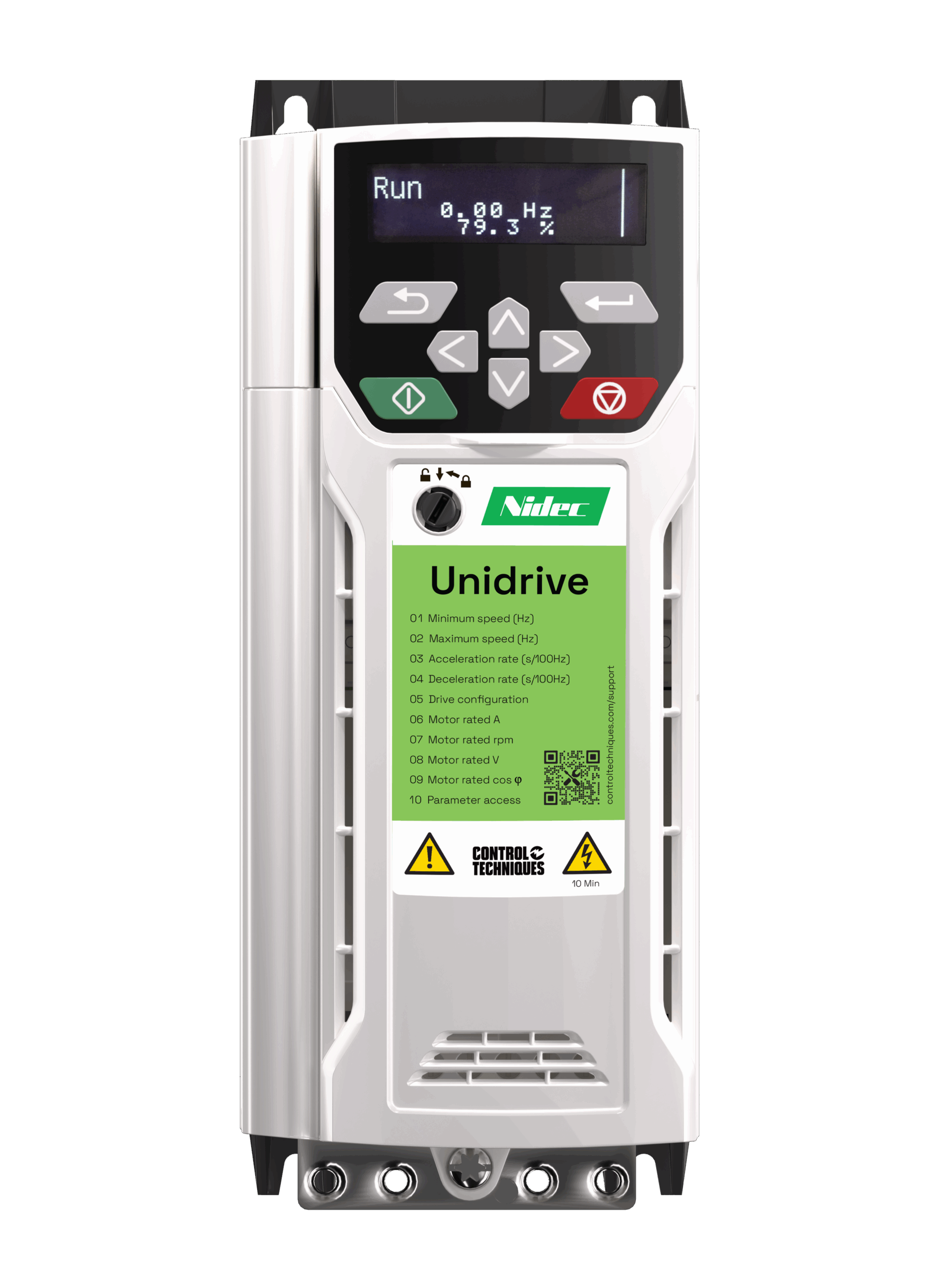

The Unidrive M400 is designed with special attention to robustness and reliability. The multi-language, 3 line display, together with the intuitive navigation buttons aid set up and fast diagnostics.
Improve throughput with advanced open-loop motor control algorithms
The Rotor Flux Control (RFC-A) mode gives maximum stability and control over induction motors at all powers.
Reduce system costs by directly integrating with your applications
The M400 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic control, sequencing, speed following and digital lock – removing the need for additional PLCs.
An optional System Integrator module can be fitted to the drive for additional I/O or fieldbus communications.
Conform to safety standards by direct safety system integration
Unidrive M400 drives have integrated dual Safe Torque Off (STO) inputs, certified to SIL3 / PLe, providing an elegant and reliable safety solution.
Features
- Open loop vector or V / Hz induction motor control
- Open loop Rotor Flux Control for induction motors (RFC-A)
Minimize downtime and system set-up time with advanced keypad options
- Informative, multi-language, 3 line display aids set up and provides diagnostic information
- 4 navigation buttons facilitate intuitive navigation and programming
- Keypad options available:
- CI Keypad – Drive mounted LCD keypad
- Remote IP66 keypad – rapid panel mount (1 x 32mm Ø hole)
- No Keypad – Control/programming performed by PC or fieldbus
Reduced system costs by directly integrating with applications
- M400 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic and sequencing with real-time tasks – removing the need for additional PLC’s
- Fit an SI module to add a fieldbus communications option or additional I/O
Improve throughput with advanced openloop motor control algorithms
- Rotor Flux Control (RFC-A) gives maximum stability and control of induction motors at all powers
- 180% motor overload suitable for heavy industrial machinery applications
- Precise frequency following is possible from an encoder or frequency/direction inputs
Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems
- M400 has integrated dual STO inputs for SIL3 / PLe conformity, eliminating the need for external safety components
